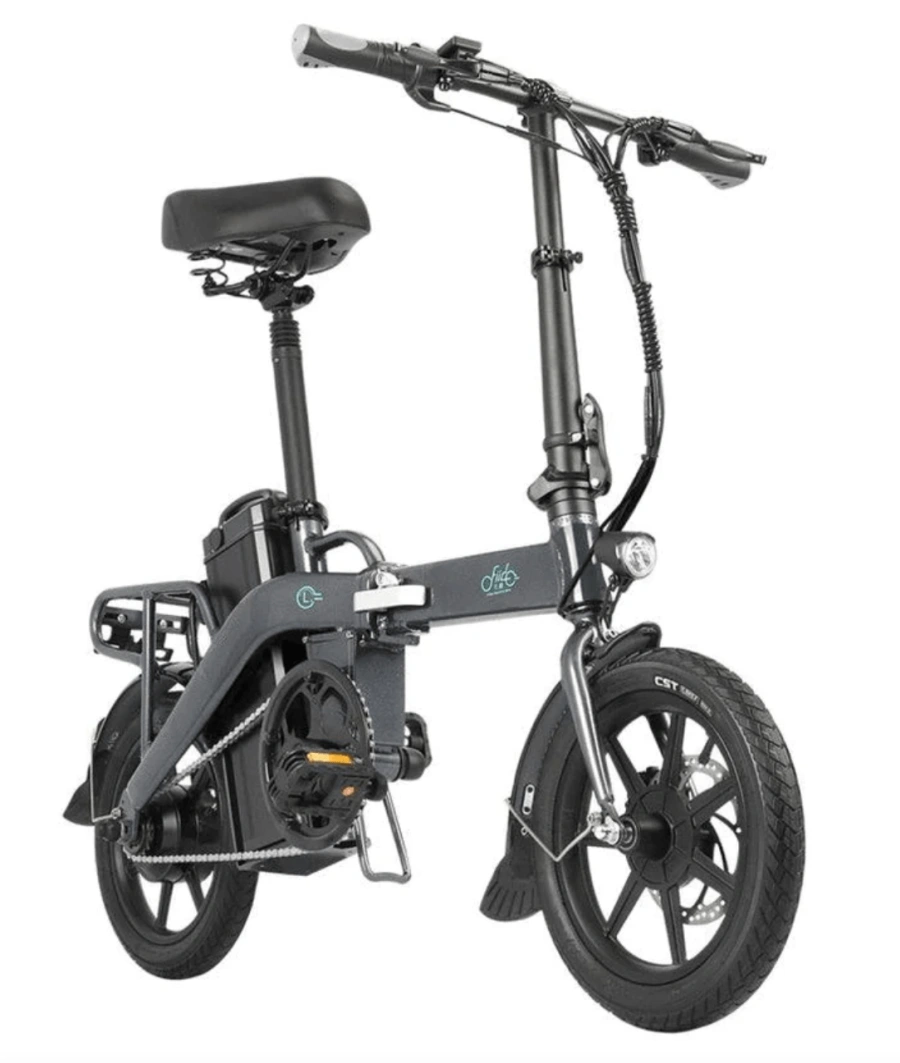

Fiido L3 Electric Bike
350W wheel motor provides the max 25km/h speed and max 20-25 degree gradient.
48V 23.2Ah Li-ion battery (included in product) for max 130Km mileage.
14 inflation tire for different grounds to take.

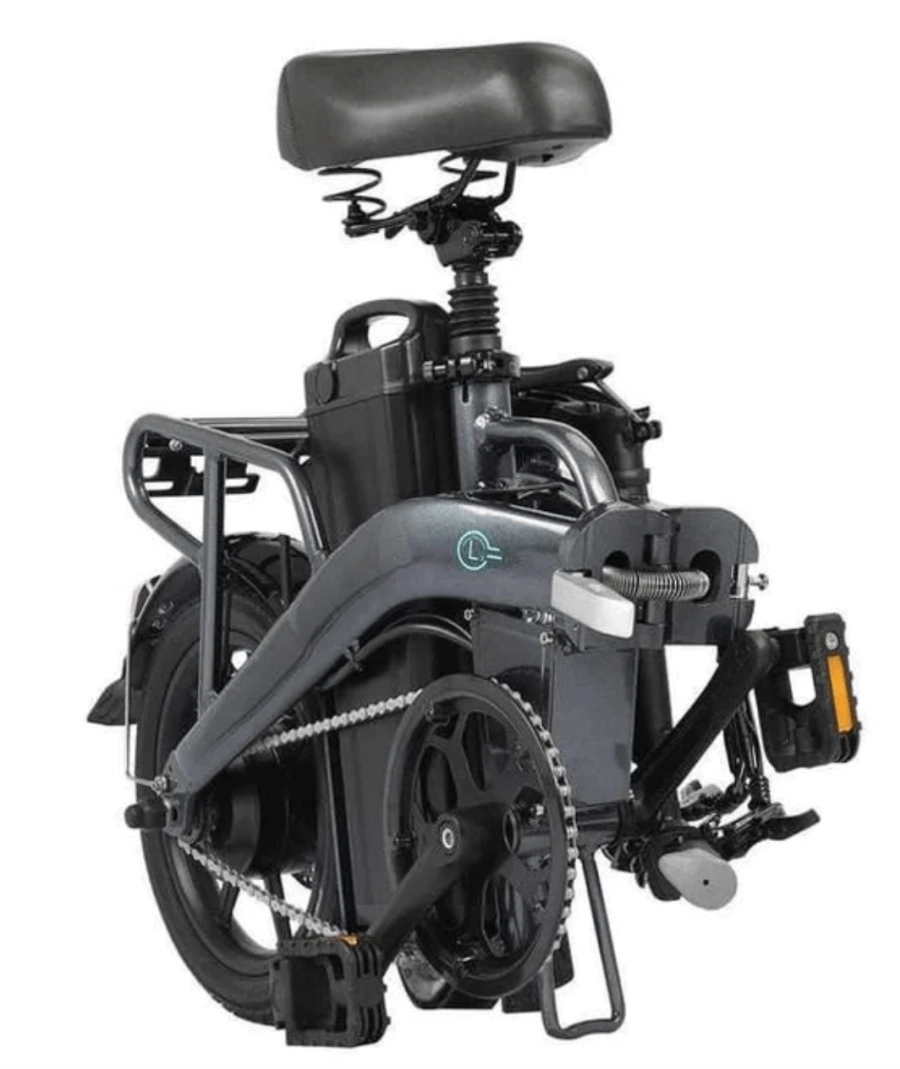

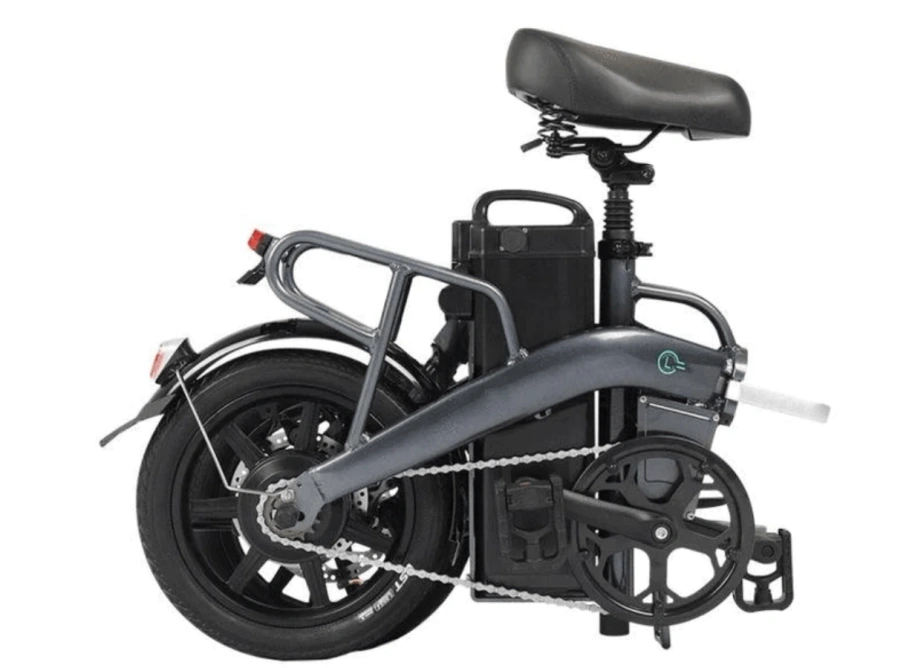

Quick folding design for convenient carrying in your car trunk.
Aluminum alloy shell for max 120kg payload.
Suitable for adults and teenagers for fun.
Removable battery makes charging more convenient.
Specifications
| DETAILS | |
| Model Name | L3 |
| Model Code | L3 |
| Net Weight | 24 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame |
14-inch aluminum alloy folding frame
|
| Fork |
High carbon steel fork with 100mm opening width
|
| Headset |
Aluminum alloy bearing limit headset
|
| E-SYSTEM | |
| Drive Unit |
350W integrated wheel brushless geared motor
|
| Battery | DMEGC 1113.6Wh |
| Charger | 48V3A |
| Display | LCD 1.47 inch |
| DRIVETRAIN | |
| Rear Derailleur | / |
| Shifters | / |
| Chain | KMC S1 |
| Crank | Aluminum alloy 52T |
| Rear Cogs | Single-speed 16T |
| Sensor | 12-magnet speed sensor |
| BRAKES | |
| Brakes |
Mechanical disc brakes with a power cut-off
|
| Brake Levers |
Aluminum alloy three-finger brake lever
|
| WHEELS | |
| Front Hub |
Aluminum alloy integrated front wheel
|
| Rims | / |
| Spokes | / |
| Tires | CST 14*1.95 |
| COMPONENTS | |
| Handlebar |
Aluminum alloy (Length: 560mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm)
|
| Stem | / |
| Grips |
TPR non-slip handle grip (Length: about 130mm)
|
| Saddle | VELO vacuum full-fit saddle |
| Seatpost |
Aluminum alloy clamp head seatpost (Length: 400mm;Diameter: 33.9mm)
|
Geometry
|
All measurements provided in mm unless otherwise noted.
|
|
| Rider heights | 5’1″ (155cm) – 6’1″ (185cm) |
| Wheel size | CST 14*1.95 |
| A—Maximum seat height | 1040mm |
| B—Minimum seat height | 740mm |
| C—Maximum Handlebar height | 1000mm |
| D—Minimum Handlebar height | 860mm |
| E—Total length | 1240mm |
| F—Handlebar length | 580mm |
| G—Folding length | 680mm |
| H—Folding height | 660mm |
What’s In The Box?
Electric bike*1
User manual*1
Charger*1
Allen Key*1
13x15mm Wrench*1
Keys*1
More Reasons to Love It
One size fits all, an e-bike for riders from 155 to 200 cm tall.
IP54 waterproof protection for various weather conditions.
Powerful motor with 40Nm of torque, delivering robust performance.
Take your battery with you for charging anytime anywhere.
Cruise control available to ease your finger.
