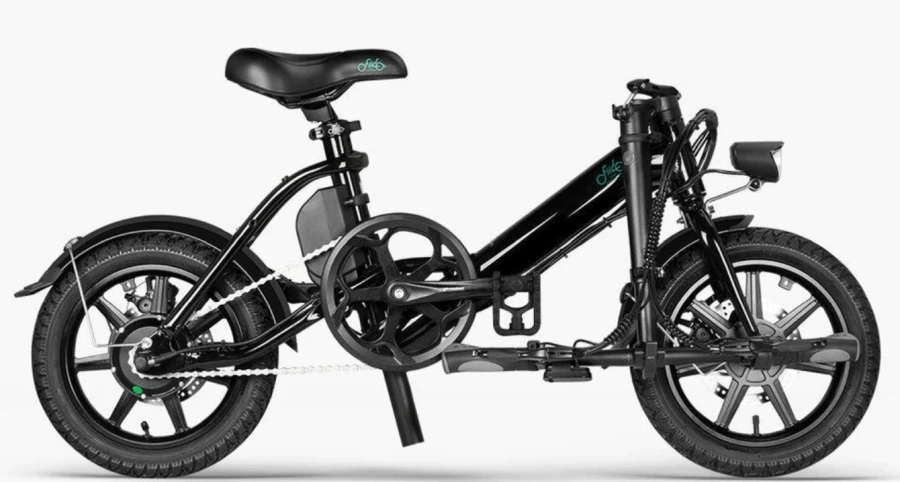

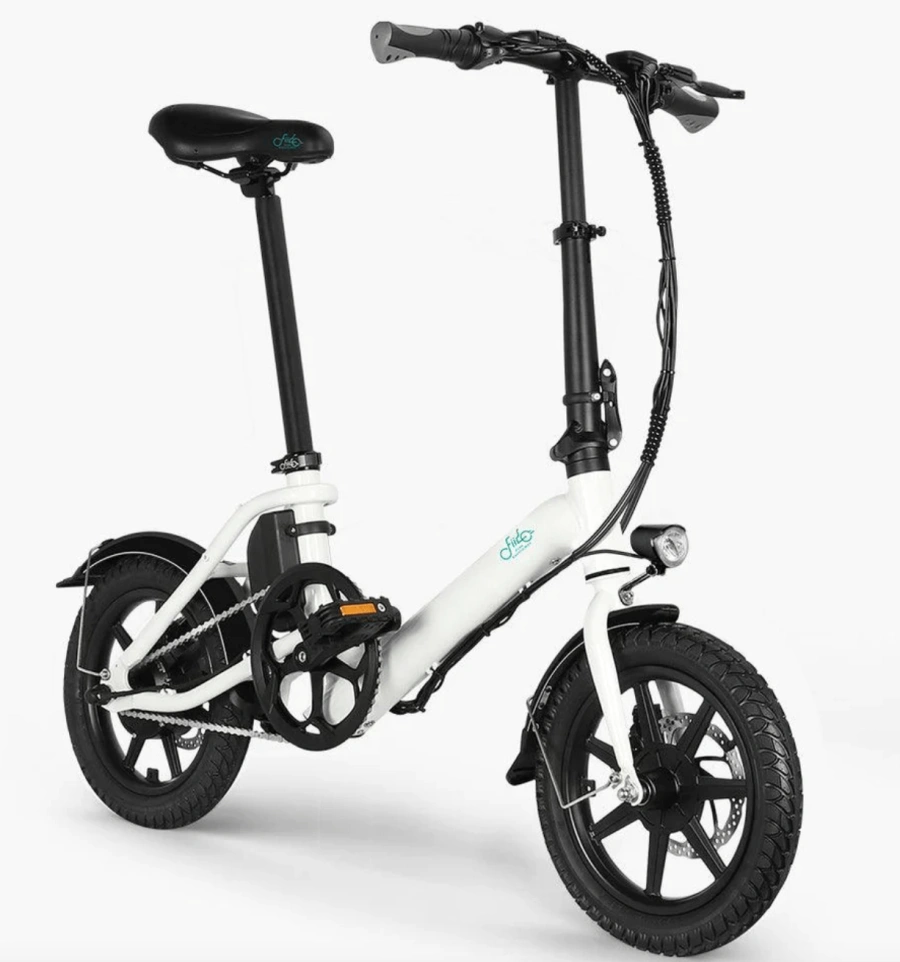

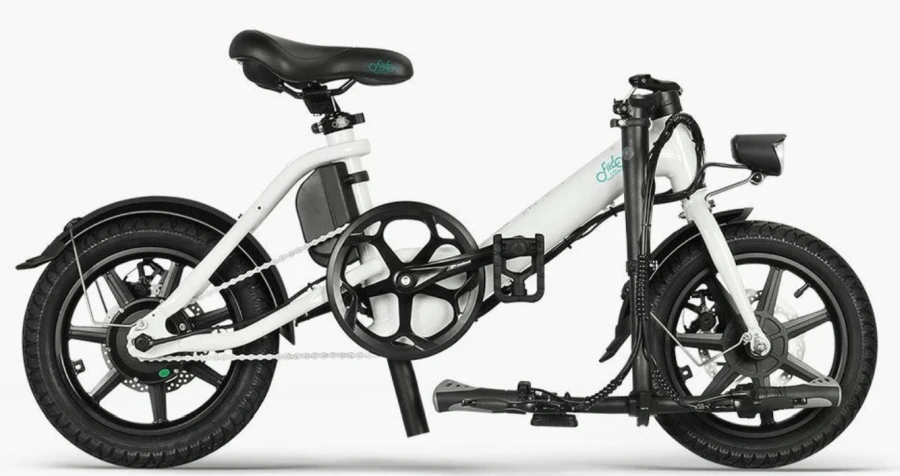

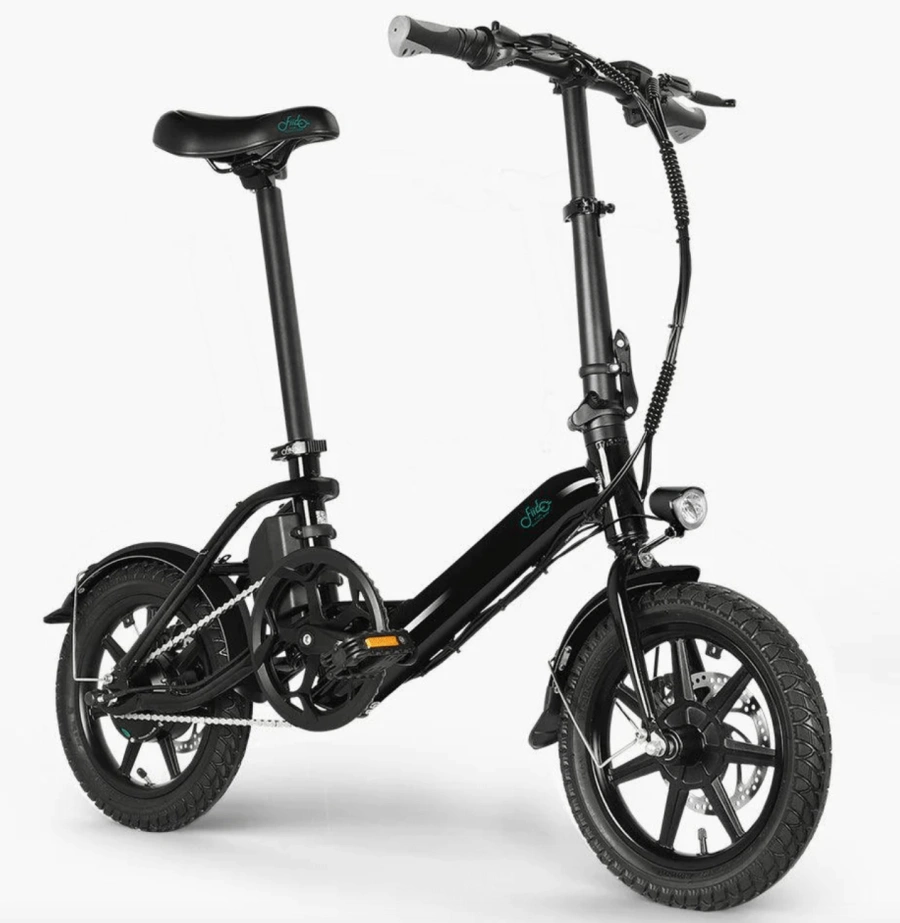

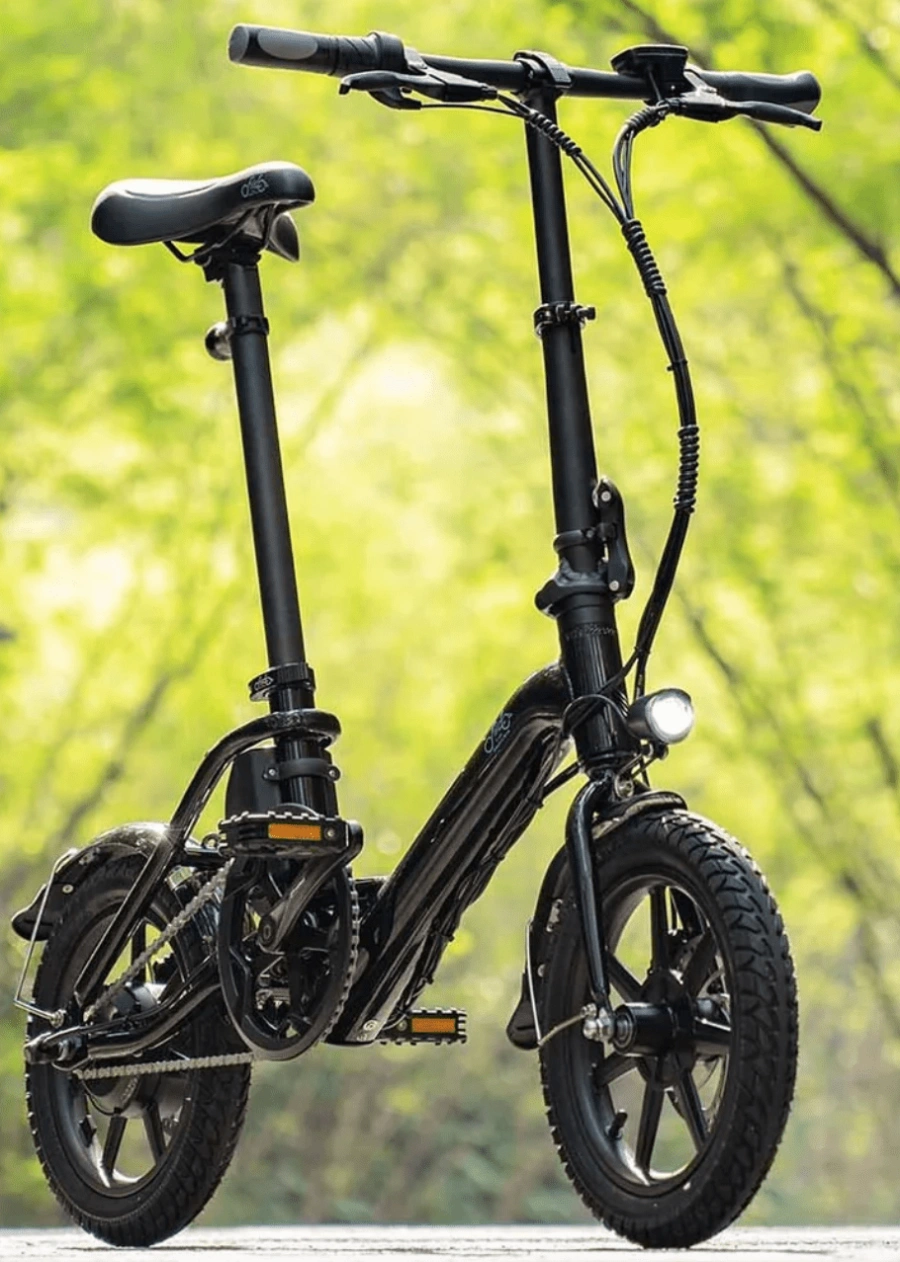

Fiido D3 Pro Electric Bike
FIIDO D3PRO
D3 Pro inherits the minimalist aesthetic style of FIIDO with its simple and smooth lines. Equipped with a large 52-tooth chain disc, a 12-tooth rear flywheel and electric-assisted three-speed transmission, leading a more comfortable riding experience and perfect balance between aesthetics and efficiency.
The magnesium alloy frame weighs only 3 kg, and with a 7.8 Ah battery, weighs 17.5 kg.
LIGHT BODY & PORTABLE TRAVEL
The frame is made of high-strength aluminum alloy and the whole bike weight is only 17.5KG, which can be lifted with one hand. Handlebars can be folded into the trunk, easier to carry on the road.
The given the claimed range of 25 Km/h. The D3 Pro is equipped with a 7.8 Ah battery.
This also means a weight reduction of 3 kg, which means that this model weighs just under 3 kg.
250 POWERFUL MOTOR
Using brushless gearless motor, lower power consumption, which making the endurance 20% stronger than normal brushless gearless motor, and starting torque is greater, it can easily overcome steep roads and uphill slopes with very low energy consumption.
Like the D11, the Fiido D3 has traditional gearing, so you can ride like a regular bike and climb hills without the use of a motor.
LONG-ACTING BATTERY & FAST CHARGING
The battery is hidden in the frame and configured with a maximum battery capacity of 7.5Ah. It only takes 4 hours to fully charged. It features a 7-speed Shimano rear cassette.
3 MODES SWITCH
Equipped with electric, moped and pedal modes. The automatic induction for switching between electric and power-assisted modes. When turning the accelerator, it will automatically be in electric mode; if the accelerator is not applied, the pedal is in electric-assisted mode.
It holds a 20-inch wheel , which makes the D3 Pro smaller when folded, but it doesn’t provide the same level of comfort as a large wheel.
Specifications
| DETAILS | |
| Model Name | D3 PRO |
| Model Code | D3 PRO |
| Net Weight | 17.3 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame | 14-inch aluminum alloy frame |
| Fork |
Aluminum alloy fork with 100mm opening width
|
| Headset |
Aluminum alloy bearing limit headset
|
| E-SYSTEM | |
| Drive Unit |
250W integrated wheel brushless geared motor
|
| Battery | DMEGC 280.8Wh |
| Charger | 36V2A |
| Display | LCD 1.47 inch |
| BRAKES | |
| Brakes |
Mechanical disc brakes with a power cut-off
|
| Brake Levers |
Aluminum alloy three-finger brake lever
|
| WHEELS | |
| Front Hub |
Aluminum alloy integrated front wheel
|
| Rims | / |
| Spokes | / |
| Tires | CST 14*2.125 |
| COMPONENTS | |
| Handlebar |
Aluminum alloy (Length: 560mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm)
|
| Stem | / |
| Grips |
TPR non-slip handle grip (Length: about 130mm)
|
| Saddle | Vacuum full-fit saddle |
| Seatpost |
Aluminum alloy clamp head seatpost (Length: 530mm;Diameter: 33.9mm)
|
Geometry
| All measurements provided in mm unless otherwise noted. | |
| Rider heights | 4’11” (150cm) – 6’1″ (185cm) |
| Wheel size | CST 14*2.125 |
| A-Seat tube | 253 |
| B-Seat tube angle | 74.5° |
| C-Head tube | 110 |
| D-Head angle | 73.5° |
| E-Top tube length | 492 |
| F-Standover height | 332 |
| G-BB drop | -93 |
| H-Rear Center | 372 |
| I-Wheelbase | 870 |
| J-Reach | 387 |
| K-Stack | 236 |
| L-Maximum seat height | 980 |
| M-Minimum seat height | 610 |
| N-Maximum Handlebar height | 1240 |
| O-Minimum Handlebar height | 580 |
| P-Total length | 1240 |
| Q-Folding height | 610 |
| R-Handlebar length | 575 |
What’s in the box?
Fiido D3Pro*1
User Manual*1
Pedals*1
Hex-wrench*1
Charger*1
More Reasons to Love It
Foldable Stem extender for compact storage

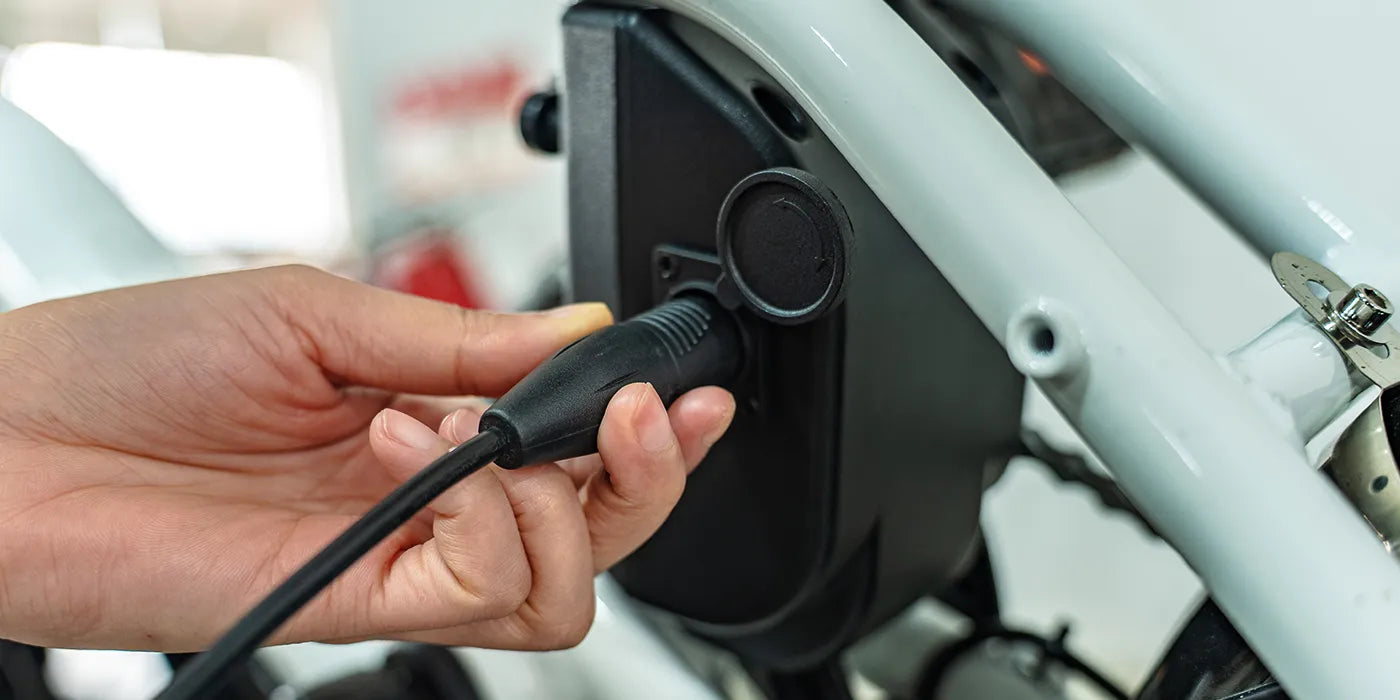

Fast charging reduces downtime effectively.
Adjustable height for personalized riding comfort.
IP54 Waterproof ensures use in any weather.
Upgraded display for precise speed control.
