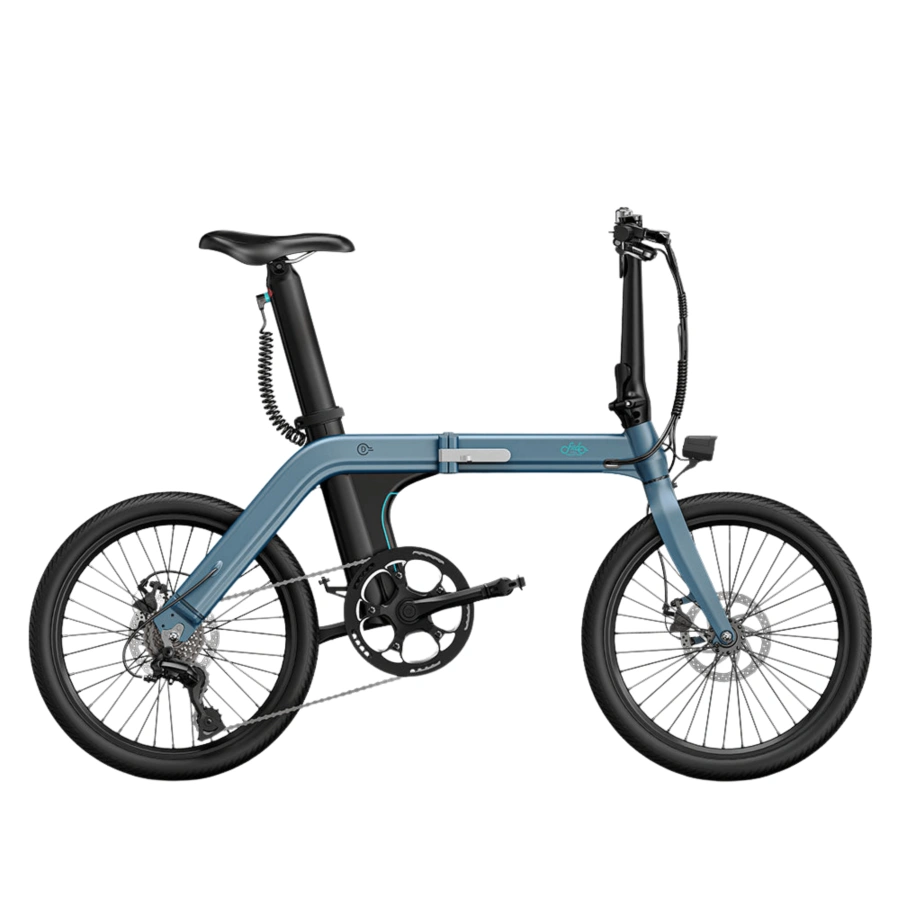

Fiido D11 Folding E-bike
Key Features:
M-shaped Aluminum Alloy
The unique M-shaped frame turns heads on the streets.
Light Weight & Powerful Battery
17.5kg ultra-light frame paired with a powerful 417Wh battery.
Long Range
Up to 100km in pedal-assist mode or 40km in full-throttle mode.
Foldable for Easy Storage
Fold in 5 seconds, compact size for easy storage anywhere.
Upgraded Display
High-definition screen shows clear, real-time stats for speed, battery life, and distance monitoring.
Specifications
| DETAILS | |
| Model Name | D11 |
| Model Code | D11 |
| Net Weight | 18.5 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame | 20-inch aluminum alloy folding frame |
| Fork |
Magnesium alloy fork with 100mm opening width
|
| Headset | Ball bearing limit bowl set |
| E-SYSTEM | |
| Drive Unit | 250W |
| Battery | DMEGC 417.6Wh |
| Charger | 36V2A |
| Display | LCD 1.47 inch |
| DRIVETRAIN | |
| Rear Derailleur | SHIMANO TY300D |
| Shifters | 7-speed |
| Chain | KMC Z7 |
| Crank | Aluminum alloy 52T |
| Rear Cogs | 7-speed (14-28T) |
| Sensor | 12-magnet speed sensor |
| BRAKES | |
| Brakes | Mechanical disc brake with wire pull |
| Brake Levers |
Aluminum alloy three-finger brake lever
|
| WHEELS | |
| Front Hub | Aluminum alloy double-layer hub |
| Rims | Aluminum alloy double-layer rim |
| Spokes |
Stainless steel spokes with brass nipples
|
| Tires | CST 20*1.75 |
| COMPONENTS | |
| Handlebar |
Aluminum alloy (Length: 560mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm)
|
| Stem | Aluminum alloy stem |
| Grips |
TPR non-slip handle grip (Length: about 130mm)
|
| Saddle | VELO vacuum full-fit saddle |
| Seatpost | Aluminum alloy battery seat tube |
Geometry
|
All measurements provided in mm unless otherwise noted.
|
|
| Rider heights | 5’1″ (155cm) – 6’5″ (195cm) |
| Wheel size | CST 20*1.75 |
| A-Seat tube | 415 |
| B-Seat tube angle | 74.5° |
| C-head tube | 100 |
| D-Head angle | 72° |
| E-Top tube length | 546 |
| F-Standover height | 628 |
| G-BB drop | -40 |
| H-Rear Center | 425 |
| I-Wheelbase | 975 |
| J-Reach | 392 |
| K-Stack | 350 |
| L-Maximum seat height | 1240 |
| M-Minimum seat height | 810 |
| N-Total length | 1480 |
| O-Handlebar height | 1240 |
| P-Handlebar length | 580 |
| Q-Folding length | 840 |
| R-Folding height | 740 |
| S-Folding width | 400 |
What’s In The Box?
Fiido D11*1
Fenders*1
User Manual*1
Pedals*1
Open Spanner*1
Allen Key*1
Charger*1
More Reasons to Love It
Mechanical disc brakes with power cut off safety
Efficient brushless geared motor for powerful acceleration.
Integration of taillight and removable seatpost battery.
Go Further&Ride Longer.
SHIMANO 7-speed gears for smooth terrain adaptation.
Real-world Range Testing
| Avg. Spd.(km/h) | Range(km) | |
| Full Throttle | ||
| Preset | 19.4 | 40.83 |
| Pedal Assist | ||
| ECO | 13.57 | 99.25 |
| Normal | 15.81 | 56.84 |
| Sport | 16.23 | 51.74 |
| （The results above were obtained with a rider weighing 75kg, in a flat road environment at 33℃. Please note that the cruising range can vary depending on riding conditions; refer to actual usage for more accurate information) | ||
