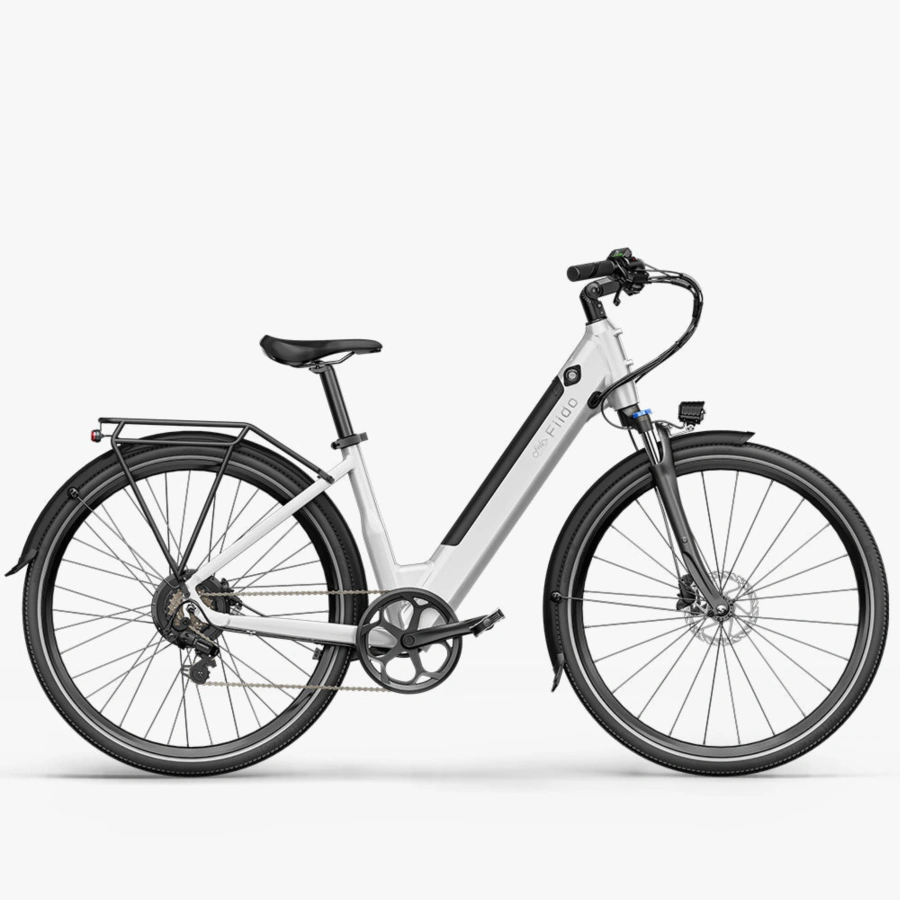

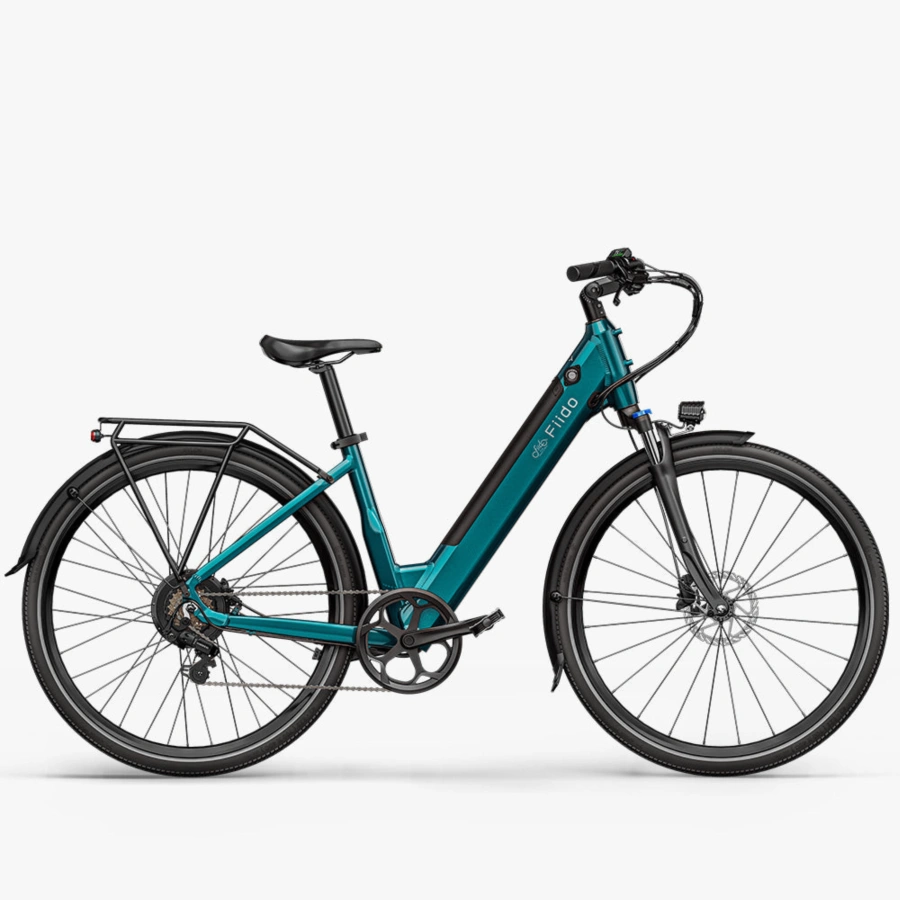

Fiido C11 City E-bike
Features
Hydraulic disc brakesDelivers better power, stability, adjustability, and performance than traditional mechanical brakes.Long RangeUp to 90 km of range for worry-free exploration. Range extendable with extra batteries.Removable BatteryThe 500Wh removable battery enables easy charging anywhere.Multi AccessoriesRear rack and optional front basket greatly enhance the e-bike’s versatility and practicality.
Specifications
| DETAILS | |
| Model Name | C11 |
| Model Code | C11 |
| Net Weight | 24.5 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame | 700C aluminum alloy step-through city frame |
| Fork | Suspension fork (40mm travel) with 100mm opening width |
| Headset | Aluminum alloy bearing headset |
| E-SYSTEM | |
| Drive Unit | 500W |
| Battery | DMEGC/EVE 499.2Wh |
| Charger | 48V2A |
| Display | LCD 1.47 inch |
| DRIVETRAIN | |
| Rear Derailleur | SHIMANO TY300D |
| Shifters | 7-speed |
| Chain | KMC Z7 |
| Crank | Aluminum alloy 52T |
| Rear Cogs | 7-speed (14-28T) |
| Sensor | 12-magnet speed sensor |
| BRAKES | |
| Brakes | Dual-piston hydraulic disc brake with power cut-off |
| Brake Levers | Hydraulic disc brake |
| WHEELS | |
| Front Hub | Aluminum alloy double-bearing barrel axle hub (quick release front axle) |
| Rims | Aluminum alloy double-layer rim |
| Spokes | Stainless steel spokes with brass nipples |
| Tires | CST 27.6*1.57 |
| COMPONENTS | |
| Handlebar | Aluminum alloy (Length: 635mm Maximum diameter: 31.8mm Minimum diameter: 22.2mm) |
| Stem | Aluminum alloy adjustable stem |
| Grips | TPR non-slip handle grip (Length: about 130mm) |
| Saddle | VELO vacuum full-fit saddle |
| Seatpost | Aluminum alloy clamp head seatpost (Length: 400mm, Diameter: 33.9mm |
Geometry
| All measurements provided in mm unless otherwise noted. | |
| Rider heights | 5’1″ (155cm) – 6’5″ (195cm) |
| Wheel size | CST 700*40C |
| A-Seat tube | 450 |
| B-Seat tube angle | 73° |
| C-Head tube | 190 |
| D-Head angle | 70.5° |
| E-Top tube length | 605 |
| F-Standover height | 572 |
| G-BB drop | 68 |
| H-Rear Center | 468 |
| I-Wheelbase | 1115 |
| J-Reach | 398 |
| K-Stack | 676 |
| L-Maximum seat height | 1050 |
| M-Minimum seat height | 790 |
| N-Rear rack height | 755 |
| O-Total length | 1820 |
| P-Handlebar height | 1150 |
| Q-Handlebar length | 670 |
| R-Rear Rack Load | 25kg |
| S-Sear rack outer diameter length | 300 |
| T-Rear rack width | 128 |
What’s In The Box?
Fiido C11*1
Fenders*1
User Manual*1
Pedals*1
Open Spanner*1
Allen Key*1
Charger*1
Rear Rack*1
Kickstand*1
700C Puncture-Proof Tyres
Reflective sides on 700C tires boost visibility in dark.
Backlit LCD Display
Full-color display shows metrics, connects to watch for effortless activation.
Charging your phone
Concealed USB port for phone charging.
Strong torque motor
A 55Nm torque motor, ensuring exceptional power.

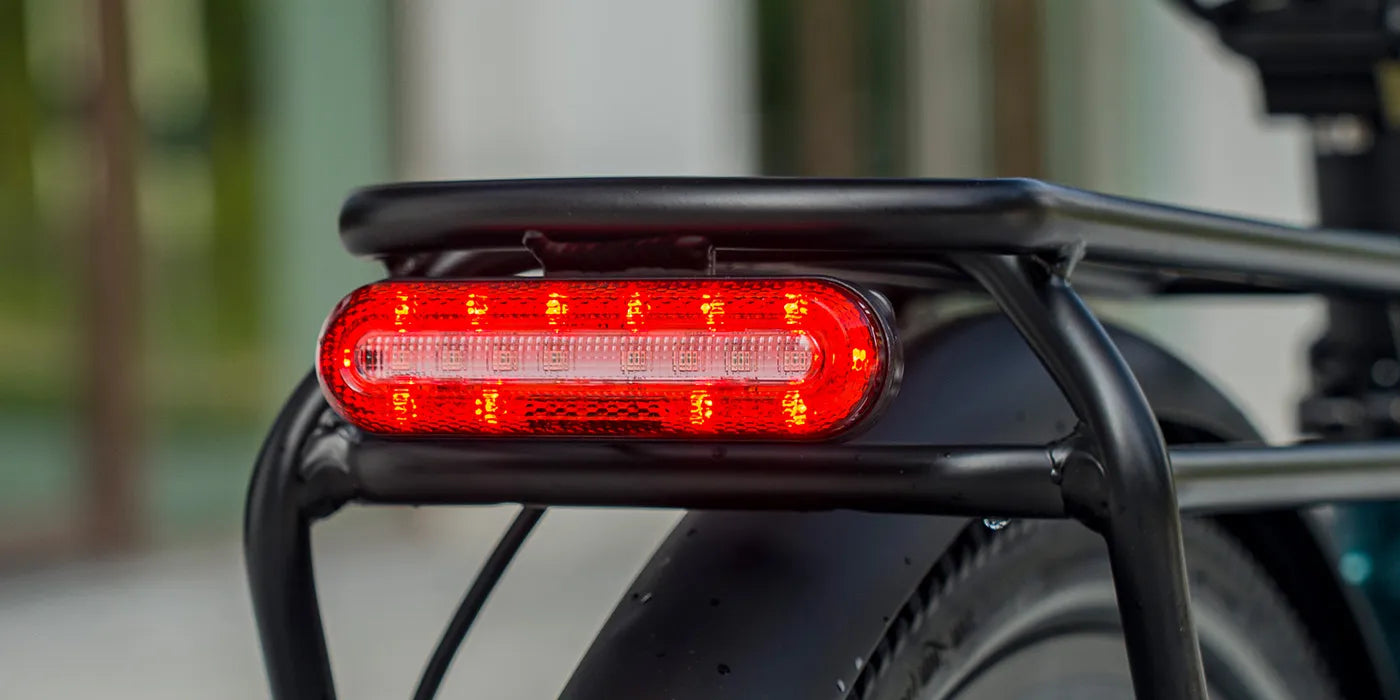

Brake Light
Auto-illuminating brake light ensures safety.
Loud Horn
Enhanced safety with loud, clear horn.

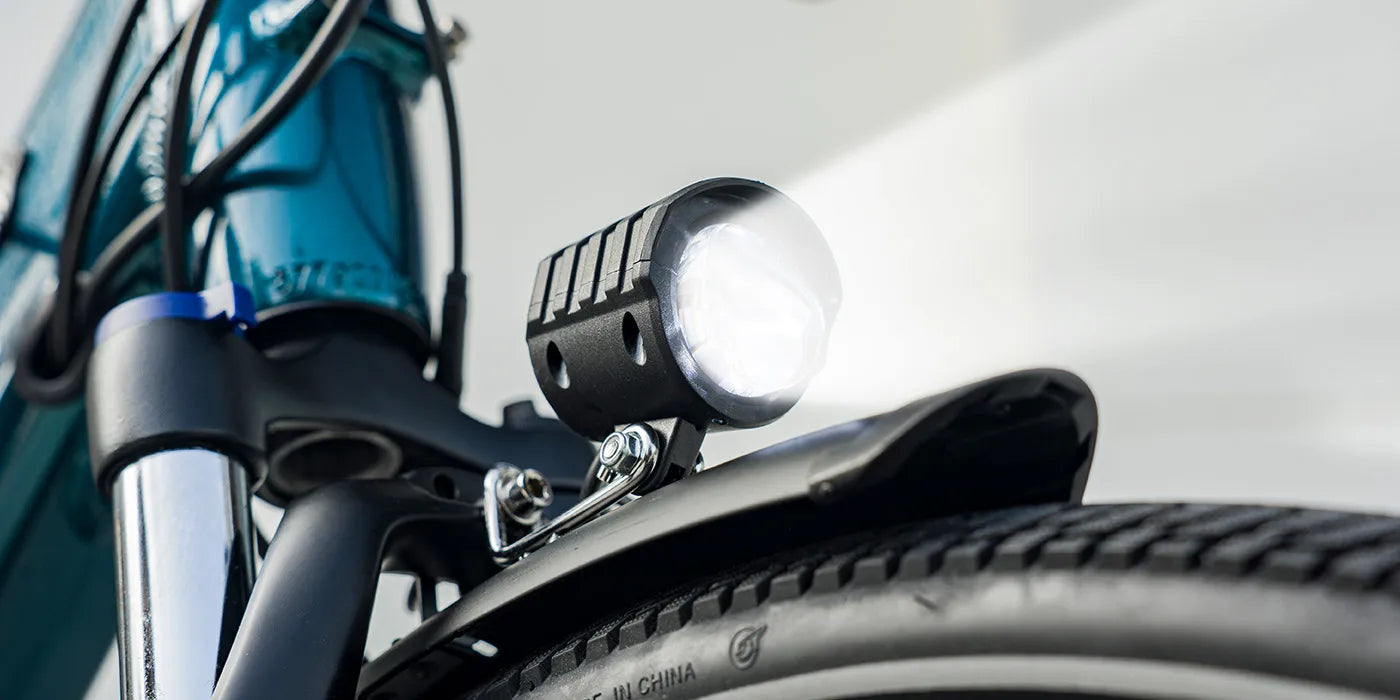

Headlight Swivels with Direction
Swiveling headlight delivers full visibility.
Enhanced 7-Speed Shifting
Compared to the 6-speed, the 7-speed system delivers smoother transitions, improved riding efficiency, and greater adaptability.
