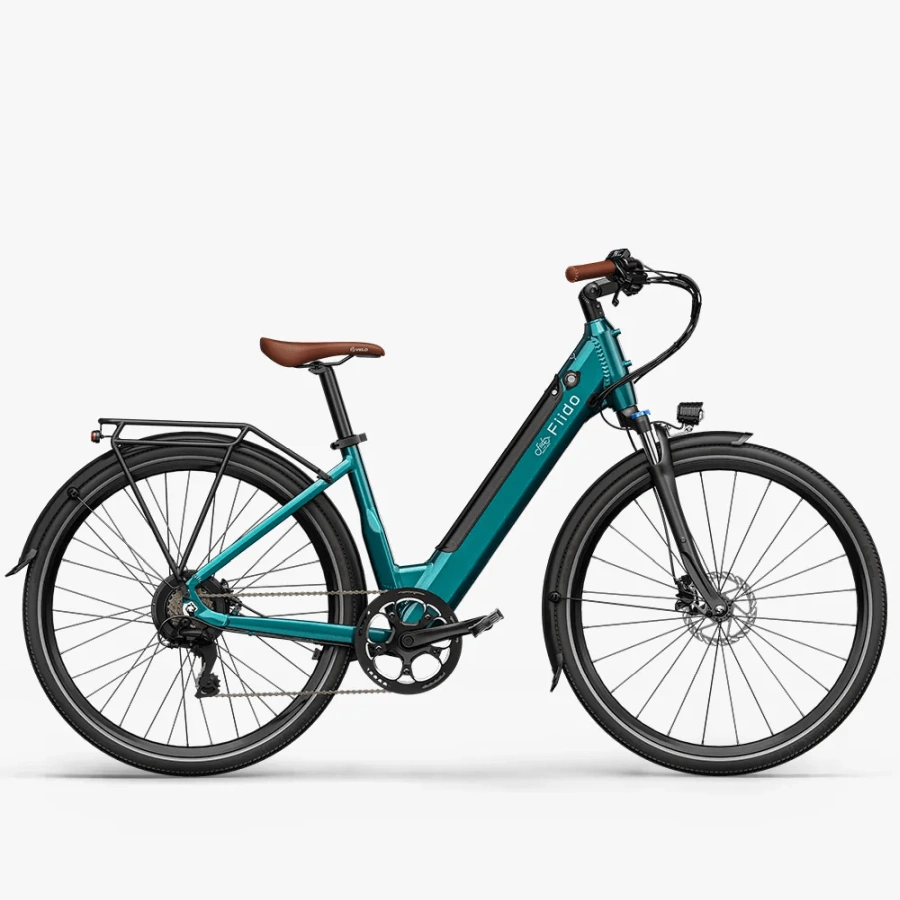

Fiido C11 Pro City E-bike
Specifications
| Specifications | |
| DETAILS | |
| Model Name | C11 Pro |
| Model Code | C11 Pro |
| Net Weight | 24.5 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame | 700C aluminum alloy step-through city frame |
| Fork |
Aluminum alloy suspension fork (40mm travel) with 100mm opening width
|
| Headset | Aluminum alloy bearing headset |
| E-SYSTEM | |
| Drive Unit | 250W |
| Battery | DMEGC/EVE 499.2Wh |
| Charger | 48V2A |
| Charging Time | 5h |
| Display | LCD 1.47 inch |
| DRIVETRAIN | |
| Rear Derailleur | SHIMANO TY300D |
| Shifters | 7-speed |
| Chain | KMC Z7 |
| Crank | Aluminum alloy 52T |
| Rear Cogs | SHIMANO TZ500 7S (14-28T) |
| Sensor | Torque Sensor Mivice S200 |
| Throttle | Max speed on throttle: 6 km/h |
| BRAKES | |
| Brakes | Dual-piston hydraulic disc brake with power cut-off |
| Brake Levers | Hydraulic disc brake |
| WHEELS | |
| Front Hub |
Aluminum alloy double-bearing barrel axle hub (quick release front axle)
|
| Rims | Aluminum alloy double-layer rim |
| Spokes | Stainless steel spokes with brass nipples |
| Tires | CST 27.6*1.57 |
| COMPONENTS | |
| Handlebar |
Aluminum alloy (Length: 635mm Maximum diameter: 31.8mm Minimum diameter: 22.2mm)
|
| Stem | Aluminum alloy adjustable stem |
| Grips | TPR non-slip handle grip (Length: about 130mm) |
| Saddle | VELO vacuum full-fit saddle |
| Seatpost |
Aluminum alloy clamp head seatpost (Length: 400mm, Diameter: 33.9mm)
|
Geometry
| All measurements provided in mm unless otherwise noted. | |
| Rider heights | 5’1″ (155cm) – 6’5″ (195cm) |
| Wheel size | CST 700*40C |
| A-Seat tube | 450 |
| B-Seat tube angle | 73° |
| C-Head tube | 190 |
| D-Head angle | 70.5° |
| E-Top tube length | 605 |
| F-Standover height | 572 |
| G-BB drop | 68 |
| H-Rear Center | 468 |
| I-Wheelbase | 1115 |
| J-Reach | 398 |
| K-Stack | 676 |
| L-Maximum seat height | 1050 |
| M-Minimum seat height | 790 |
| N-Rear rack height | 755 |
| O-Total length | 1820 |
| P-Handlebar height | 1150 |
| Q-Handlebar length | 670 |
| R-Rear Rack Load | 25kg |
| S-Sear rack outer diameter length | 300 |
| T-Rear rack width | 128 |
What’s In The Box?
Fiido C11 Pro*1
Fenders*1
User Manual*1
Pedals*1
Open Spanner*1
Allen Key*1
Charger*1
Rear Rack*1
Kickstand*1
More Reasons to Love It
Stop With a Light Touch
Deliver max. force feedback and top braking power using dual-piston hydraulic disc brakes.
Powerful, Noise-Free Hill Climbs
55Nm low-resistance motor. High torque for ascents. Low-noise brushless structure. 250W, EU compliant and energy efficient.
Faster on Flat Roads, Easier on Ramps
Higher speed than belt-chain bikes on flats, effortless onhills. Shimano 7-speed 11:32T gear ratio optimizes ridingon every terrain.
Ready for Rain or Snow
Full-bike resistance to dust and splashes. Reliable use in all weathers with IP54 rating.
Walk Uphill and Transport Items with Ease
Smooth, no-resistance pushing with one-touch assist.
Clear Readings in Any Weather
Readable in rain or bright sunlight, 1.47-inch color HD display for reliable info access.
Shock Minimized
Smooth, stable rides on rough roads with suspension front fork.
Safety Enhanced
Stay visible with the ultra-bright front light, and alert traffic with the automatic brake light, which activates when slowing.
Suits Diverse Heights and Riding Scenarios
Mount easily in skirts, no bike tilting when carrying fragile items — step-thru frame, adjustable seat and handlebar ensure compatibility.
3-Device Data Sync
Sync riding data across the display, app and our exclusive Fiido watch, which tracks heart rate and blood oxygen to keep you updated on health.
Real-world Range Testing
| Avg. Spd.(km/h) | Range(km) | |
| Pedal Assist | ||
| ECO | 20.43 | 104.37 |
| Sport | 21.72 | 87.42 |
| Turbo | 22.3 | 80.13 |
