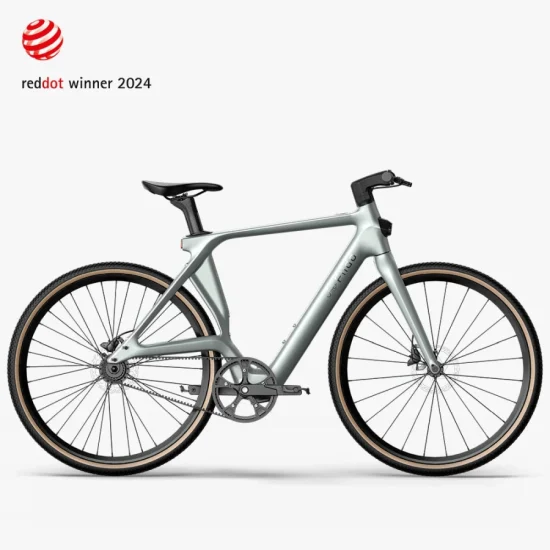

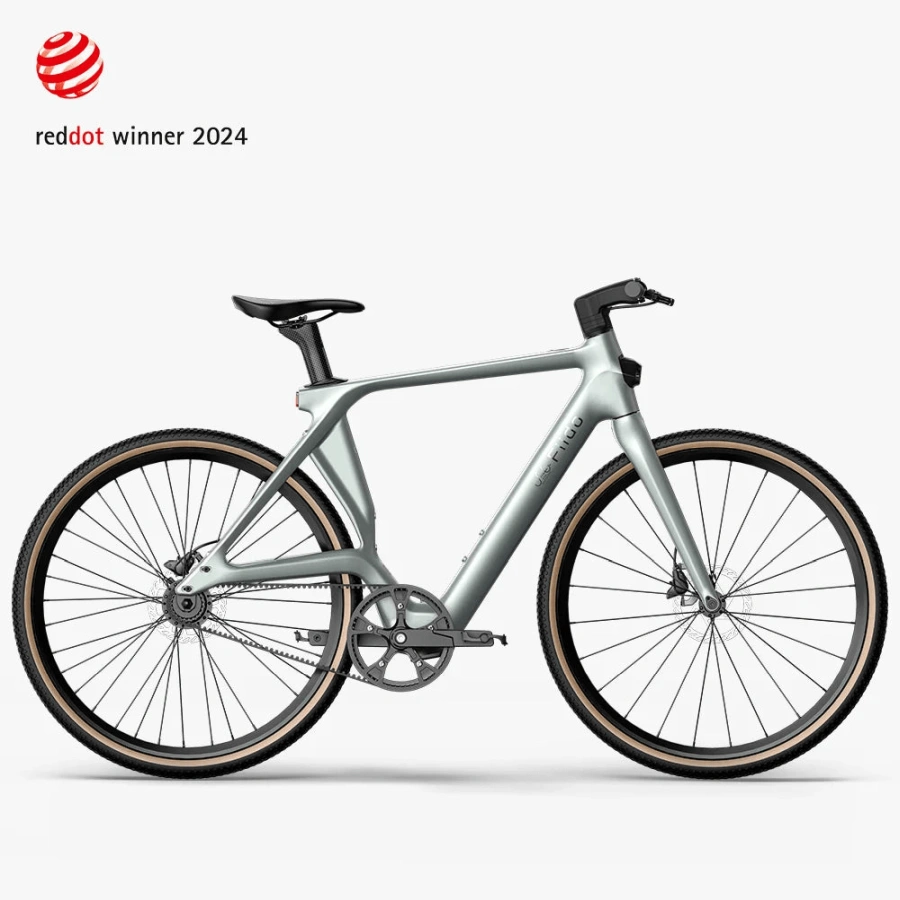

Fiido Air Carbon Fiber E-bike
Specifications
| DETAILS | |
| Model Name | AIR |
| Model Code | C31 |
| Net Weight | 13.75 kg |
| Payload | 120 kg |
| FRAMESET | |
| Frame | 700C carbon fiber frame |
| Fork | Carbon fiber through axle fork (axle diameter 15mm) with 100mm opening width |
| Headset | Aluminum alloy bearing headset |
| E-SYSTEM | |
| Drive Unit | Mivice M070 250W |
| Battery | DMEGC 208.8Wh |
| Charger | 36V2A |
| Display | LCD 2.4 inch |
| DRIVETRAIN | |
| Rear Derailleur | / |
| Shifters | / |
| Chain | GATES CDN Belt |
| Crank | GATES CDX 60T |
| Rear Cogs | GATES CDC 22T |
| Sensor | Torque Sensor Mivice S200 |
| BRAKES | |
| Brakes | Hydraulic Disc Brake |
| WHEELS | |
| Front Hub | Aluminum alloy double-bearing barrel axle hub (barrel axle diameter 15mm) |
| Rims | Aluminum alloy double-layer rim |
| Spokes | Stainless steel spokes with brass nipples |
| Tires | KENDA 27.6*1.57 |
| COMPONENTS | |
| Handlebar | Carbon fiber (Length: 640mm Maximum diameter: 31.8mm Minimum diameter: 22.2mm) |
| Stem | Carbon fiber stem |
| Grips | TPR non-slip handle grip (Length: about 130mm) |
| Saddle | VELO vacuum full-fit saddle |
| Seatpost | Carbon fiber aero seatpost (Length: M-355mm; L-385mm; XL-415mm) |
Geometry
|
All measurements provided in mm unless otherwise noted.
|
|||
| M | L | XL | |
| Rider heights | 5’3″ (160cm) – 5’9″ (175cm) | 5’7″ (170cm) – 6’3″ (190cm) | 6’1″ (185cm) – 6’9″ (205cm) |
| Wheel size | KENDA 700*40C | KENDA 700*40C | KENDA 700*40C |
| A-Seat tube | 510 | 540 | 580 |
| B-Seat tube angle | 73° | 73° | 73° |
| C-Head tube | 150 | 170 | 190 |
| D-Head angle | 71° | 72° | 72.5° |
| E-Top tubelength | 576 | 592 | 600 |
| F-Standover height | 818 | 845 | 876 |
| G-BB drop | 70 | 70 | 70 |
| H-Rear Center | 435 | 435 | 435 |
| I-Wheelbase | 1057 | 1063 | 1063 |
| J-Reach | 394 | 404 | 405 |
| K-Stack | 593 | 616 | 638 |
| L-Maximum seat height | 950 | 1010 | 1080 |
| M-Minimum seat height | 890 | 920 | 950 |
| N-Totallength | 1755 | 1780 | 1780 |
| O-Handlebar height | 987 | 1010 | 1032 |
| P-Handlebar length | 655 | 655 | 655 |
What’s In The Box?
Electric bike*1
User Manual*1
Charger*1
Pedals*1
Y-type Aller Wrench*1
Hex Wrench*1
Open Spanner*1
More Reasons to Love It
Light as Air. Only at the 13kg level.
Discover the art of precision and grace.
Eye-catching Red Dot Award-winning design
The rhomboid design exudes a futuristic vibe. It’s bold, daring, and uncompromising.
Less is more
Simplified, hidden wiring integrated into the bike.
The stealth carbon E-bike
You wouldn’t guess it’s an ebike, aside from the headlights and taillights—no bulky components, just pure simplicity.
Gates Carbon Drive CDN
A maintenance-free belt drive that eliminates the need for frame disassembly.
Award-Winning Torque Sensor
Paired with a 35NM silent motor, this advanced torque sensor enables you to tackle steep inclines with ease and precision.
Agile and Responsive Performance
This unparalleled support system—MIVICE system merged with Fiido’s advanced design—delivers complete control and responsive handling.
Double your range
The optional range-extender battery doubles your range. Go anywhere you want with ease.
